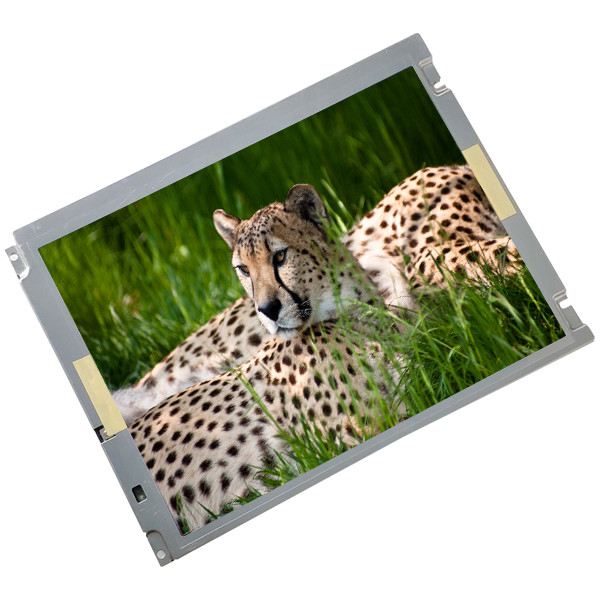

Name: LTBSHT702G21CKS 640*480 9.4 inch lcd screen Display Panel for Industrial
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LTBSHT702G21CKS
Availability: InStock

Brand Name:	NAN YA
Model Number:	LTBSHT702G21CKS
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

LTBSHT702G21CKS

Diagonal Size:

9.4"

Resolution:

640×480, VGA 84PPI

Active Area:

191.97(W)×143.97(H) Mm

Bezel Opening:

202.4(W)×151.2(H) Mm

Outline Size:

260.5(W)×174(H) ×8(D) Mm

Panel Weight:

350g

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

LTBSHT702G21CKS 640*480 9.4 inch lcd screen Display Panel for Industrial

LTBSHT702G21CKS Product details :

NAN YA LCD Screen LTBSHT702G21CKS
Manufacturer	NAN YA
Model Name	LTBSHT702G21CKS
Screen Size	9.4 inch
Screen Type	LCM , FSTN-LCD
Pixel Number	640×480 (VGA) 84PPI
Arrangement	Rectangle
Active Area(mm)	191.97 × 143.97 (H×V)
Outline(mm)	260.5 × 174 × 8 (H×V×D)
Bezel Area(mm)	202.4 × 151.2 (H×V)
Treatment	Antiglare
Luminance	70 cd/m² (Typ.)
Contrast Ratio	20 : 1 (Typ.) (TM)
Response	300/200 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	STN, Black/White (Negative), Transmissive
Color Depth	Monochrome
Backlight	1 pcs CCFL , 30K hours , No Driver
Mass	350g
Used for	Industrial
Refresh Rate	70Hz
Touchscreen	Without
Signal Type	Parallel Data (1ch, 4-bit) , Connector 15 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
LTBSHT702G21CKS 640*480 9.4 inch lcd screen Display Panel for Industrial

LTBSHT702G21CKS NOTE:

Make sure that the panel is compared with the panel shown in the photo, and the appearance, fasteners and connectors must match.

Note compatible/incompatible models (if any).

Note that you will receive a compatible model in the delivery, which may not match the model shown in the header.

In the same machine model, there may be different and incompatible matrices.

The installation of panels requires the high qualification of professionals.

LTBSHT702G21CKS Shippment & Packing

LTBSHT702G21CKS 640*480 9.4 inch lcd screen Display Panel for Industrial 0

LTBSHT702G21CKS Packing :

Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .

LTBSHT702G21CKS Shipping :

1, Shipping via China Post Registered Air Mail or ePacket.

2, We will send out your goods within 3 working days after we get your order .

3, Normally , you can get the goods within 27 calendar days .

4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order

5. If you want us send it to another address , pls inform us in advance , and leave message in our transaction.

LTBSHT702G21CKS Warranty :

1, We take 12 months warranty from the shipping date , no matter what quality problem it's .

2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .

LTBSHT702G21CKS FAQ:

Q: How to make payment for LTBSHT702G21CKS ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of LTBSHT702G21CKS at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of LTBSHT702G21CKS ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LTBSHT702G21CKS by credit card ?

A: Yes!you can use your credit card through your Paypal account.
