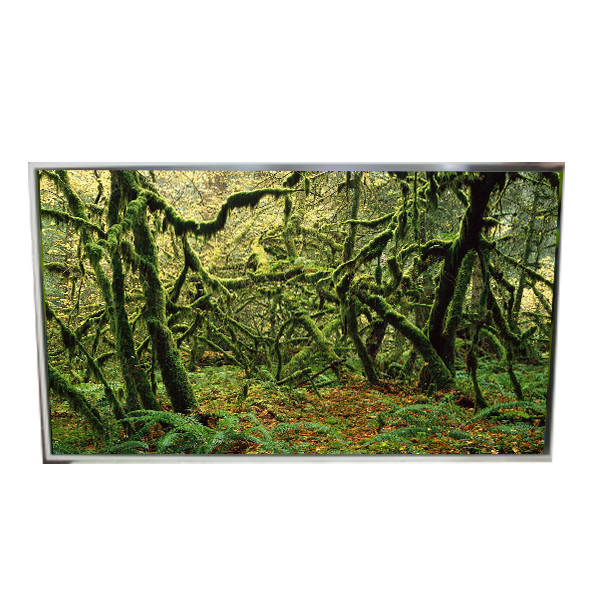

LD490EPY-SHP1 51 Pins 1920*1080 60Hz LCD Screen for Digital Signage

LD490EPY-SHP1 51 Pins 1920*1080 60Hz LCD Screen for Digital Signage

Brand Name: LG
Model Number: LD490EPY-SHP1
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
LD490EPY-SHP1
Diagonal Size:
49"
Panel Type:
A-Si TFT-LCD, CELL, FOB
Resolution:
1920(3)×1080, FHD 45PPI
Pixel Format:
RGBW Vertical Stripe
Active Area:
1073.8(W)×604(H) Mm
Application:
Digital Signage
Frequency:
60Hz
Supply Ability:
100000 Unit/Units per Month
Product Description

LD490EPY-SHP1 51 Pins 1920*1080 60Hz LCD Screen for Digital Signage



LD490EPY-SHP1 LCD Panel Product details :



Brand LG Display
Model P/N LD490EPY-SHP1
Diagonal Size 49"
Panel Type a-Si TFT-LCD, CELL, FOB
Resolution 1920(3)×1080, FHD 45PPI
Pixel Format RGBW Vertical Stripe
Active Area 1073.78(W)×604(H) mm
Bezel Opening -
Outline Size 1085.5(W)×616(H)×1.3(D) mm
Surface Hard coating (2H), Reflection 2.0% (Max.)
Brightness 0 cd/m²
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Min.)(CR≥10)
Display Mode S-IPS, Normally Black, Transmissive
Best View on Symmetry
Response Time 8 (Typ.)(G to G)
Glass Depth -
Transmissivity 9.5% (Typ.)(without Polarizer)
Display Colors 16.7M/1.07B 68%NTSC
Lamp Type No B/L
Frequency 60Hz
Touch Screen Without
Driver IC COFBuilt-in 12 source chips
Panel Weight 2.60/2.73Kgs (Typ./Max.)
Application Digital Signage
Signal Interface LVDS (2 ch, 8/10-bit), 51 pins Connector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 65 °C
LD490EPY-SHP1 51 Pins 1920*1080 60Hz LCD Screen for Digital Signage



LD490EPY-SHP1 LCD Panel Friendly Reminder:

Installation Guide: Please note that an installation guide is not included with this accessory. We cannot be held responsible for any damage incurred during installation. It is essential to ensure that you are proficient in installation procedures before making a bid or purchase.

Special Skills Required: Proper installation of this accessory requires special skills and techniques. We highly recommend seeking assistance from a qualified technician to ensure optimal results and prevent damage to the product or associated equipment.

Understanding Disassembly Procedure: Prior to purchase, please familiarize yourself with the disassembly procedure required for installation. This will help avoid any complications during the installation process and ensure compatibility with your device.


LD490EPY-SHP1 LCD Panel Shipping and Package :

LD490EPY-SHP1 51 Pins 1920*1080 60Hz LCD Screen for Digital Signage 0

LD490EPY-SHP1 LCD Panel Shipping and Delivery Information:

Global Shipping: We offer worldwide shipping through trusted carriers such as DHL, UPS, FedEx, EMS, TNTE-Packet, HK Post, SG Post, China Post, and more.

Fast Processing: Your order is our priority. We commit to dispatching your purchase within 3 working days following payment confirmation, excluding holidays.

Shipping Address Verification: To ensure seamless delivery, we only ship to confirmed order addresses. It is essential that your order address matches your shipping address accurately.

Shipping Status Inquiry: If you have not received your shipment within 30 days after payment, please do not hesitate to reach out to us.

LD490EPY-SHP1 LCD Panel Return Policy:

One. Courier Acceptance: Upon receipt, please carefully inspect the package in the presence of the courier. If you notice any damage or items missing, kindly contact us immediately or refuse acceptance and notify the courier. We cannot be held responsible for damages reported after the courier has left.

Two. Product Inspection: Upon receiving the goods, please conduct a bare metal test of the screen (Single board test). Avoid disassembling, removing protective film, or dismantling accessories. Any damage resulting from testing or failure to follow these instructions will not be covered by insurance. Please refrain from installing the screen directly without testing, as this will void any protection.

Three. Freight Insurance: Our store operates on a small profit margin with quick turnover. We strongly recommend purchasing freight insurance with your order. In the event of quality issues necessitating replacement, the responsibility for shipping costs will be determined according to the AASystem (All Against System) principle. Your understanding and support are greatly appreciated.

Four. Return Procedure: When returning goods, the buyer is responsible for any damage incurred during transit. Refusal to pay for such damages may result in the rejection of the return. Ensure that your contact information is included inside the box for easy communication and return processing.

Solemn Declaration: Touch screen LCD panels are fragile items. To avoid unnecessary disputes, we urge buyers to carefully review and acknowledge the terms outlined above before making a purchase. Acceptance of the goods signifies agreement with these terms, which will serve as an important basis for any subsequent processing.

Thank you for your cooperation. We wish you a pleasant shopping experience!

LD490EPY-SHP1 LCD Panel FAQ :


Q: Can you give me a discount if I need a large quantity of LD490EPY-SHP1 ?

A: Of course!If you make a large order, we will give you a discount.



Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.



Q: How long will I receive my goods of LD490EPY-SHP1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: How to make payment for LD490EPY-SHP1 ?

A: We accept T/T , Paypal , western union .
