Industrial LCD Panel Display
>

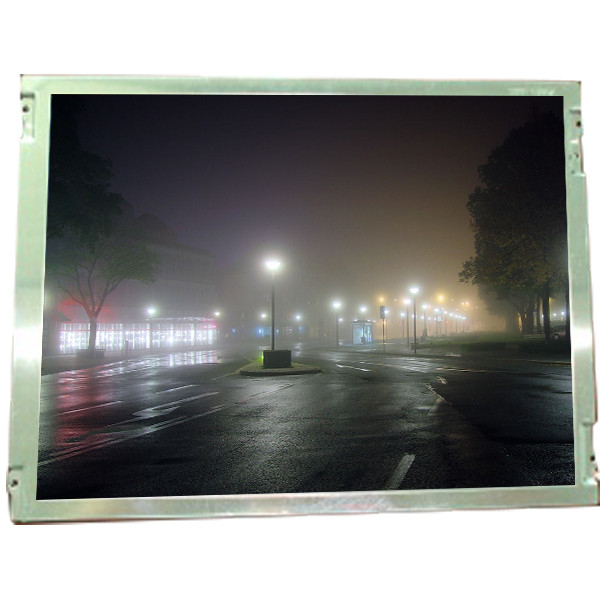

LB150X06-A3M1 15.0 inch 1024*768 LCD Screen Display

LB150X06-A3M1 15.0 inch 1024*768 LCD Screen Display

Brand Name: LG
Model Number: LB150X06-A3M1
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
LB150X06-A3M1
Diagonal Size:
15.0"
Resolution:
1024(RGB)×768, XGA 85PPI
Active Area:
304.128(W)×228.096(H) Mm
Used For:
Industrial
Pixel Format:
RGB Vertical Stripe
Outline(mm):
331.3 × 257.9× 11.5 (H×V×D)
Luminance:
250 Cd/m² (Typ.)
Viewing Angle:
60/60/45/45 (Typ.)(CR≥10)
Signal Type:
LVDS (1 Ch, 8-bit), 20 Pins Connector
Supply Ability:
100000 Unit/Units per Month
Product Description

LB150X06-A3M1 15.0 inch 1024*768 LCD Screen Display​


LB150X06-A3M1 LCD Panel Product details :



Brand LG
Model P/N LB150X06-A3M1
Diagonal Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 85PPI
Pixel Format RGB Vertical Stripe
Active Area 304.128(W)×228.096(H) mm
Bezel Opening 307.4(W)×231.3(H) mm
Outline(mm) 331.3 × 257.9× 11.5 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 350 : 1 (Typ.) (TM)
Viewing Angle 60/60/45/45 (Typ.)(CR≥10)
Response 10/20 (Typ.)(Tr/Td) ms
Good View at -
Work Mode TN, Normally White, Transmissive
Color Depth 16.7M 60%NTSC
Backlight 2 pcsCCFL, 40K hours, No Driver
Mass 1.00Kgs (Typ.)
Used for Industrial
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit), 20 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LB150X06-A3M1 15.0 inch 1024*768 LCD Screen Display



LB150X06-A3M1 LCD Screen Payment:



PayPal Payment:

Our primary method of payment is PayPal due to its buyer protection and reputation for safety in online transactions.
Please ensure you have a PayPal account ready for payment.


Confirm Shipping Address:

Before making the payment, kindly double-check that your shipping address is accurate.
We will only ship the item to the address provided during checkout, so it's crucial to verify its correctness.


Shipping Address Verification:

Please review your shipping address carefully before finalizing your purchase to avoid any shipping delays or errors.


Other Payment Methods:

If PayPal is not suitable for you, we also support alternative payment methods. Please let us know your preferred method, and we will provide instructions accordingly.


Once you've confirmed your shipping address and selected your preferred payment method, proceed with the payment, and we'll ensure prompt processing and shipment of your order. If you have any further questions or need assistance, feel free to reach out.


LB150X06-A3M1 LCD Panel Shipping and Package :

LB150X06-A3M1 15.0 inch 1024*768 LCD Screen Display 0

Shipping Policy for LB150X06-A3M1 LCD Screen:



Comprehensive Shipping Coverage: Our shipping rates encompass the entirety of the shipping process, inclusive of handling, packaging, and associated labor costs. We strive to provide a transparent and all-encompassing service to our valued customers.



Address Responsibility: It is imperative for customers to provide accurate delivery addresses. We cannot be held liable for undeliverable addresses. In instances where items are returned due to incorrect address details supplied by the buyer, we reserve the right to levy shipping fees for resending the package. Please note that any non-received items attributed to invalid addresses registered on PayPal are not covered by our full refund or replacement policy.



Local Pickup Option: For added convenience, we offer a local pickup option. Customers located nearby have the opportunity to collect their orders directly, providing a hassle-free solution for obtaining their desired products.



LB150X06-A3M1​ LCD Panel FAQ :



Q: If I order LB150X06-A3M1 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Do you accept sample orders for LB150X06-A3M1 ?

A: Of course!sample order is welcome !



Q: Can you give me a discount if I need a large quantity of LB150X06-A3M1 ?

A: Of course!If you make a large order, we will give you a discount.



Q:Can You declare my order of LB150X06-A3M1 at a very low value ?

A: Yes , we can . pls inform us before shipping .



LB150X06-A3M1 LCD Screen Contact Us:



Delivery Time frame:

If you haven't received your goods within 45 days (excluding Christmas and New Year's Day), please don't hesitate to contact us.



Resolution Options:

In case of any delivery issues, such as non-receipt of goods, we will either resend the items or provide a full refund without any excuses.
We prioritize ensuring a positive buying experience for our customers, even when delivery circumstances are beyond our control.



Customer Support:

Your satisfaction is our priority, and we are committed to providing the best possible service.
If you have any questions or concerns, please reach out to us immediately, and we will assist you promptly.


Appreciation:

We genuinely value your support and appreciate your business.


We wish you a pleasant shopping experience and look forward to serving you again in the future.


If you encounter any issues with your order or have any queries, please feel free to contact us, and we will be more than happy to assist you. Thank you for choosing us, and happy shopping!
