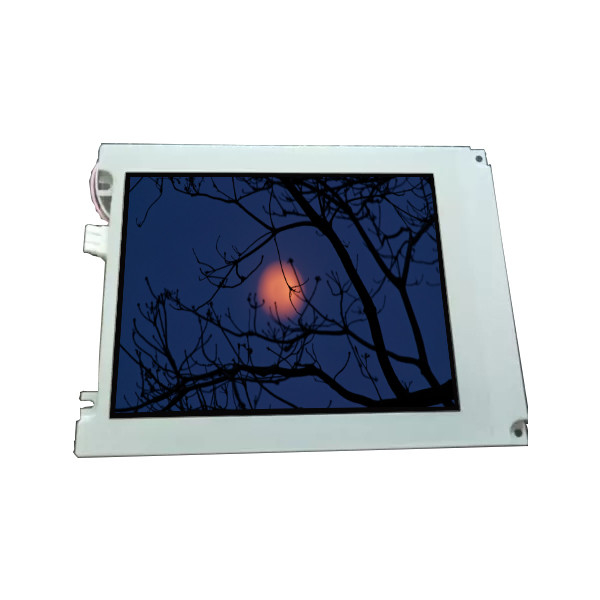

KHS057QV1CJ-G00 5.7 inch 320*240 LCD Screen LCD Display Panel

Brand Name:	Kyocera
Model Number:	KHS057QV1CJ-G00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

KHS057QV1CJ-G00

Diagonal Size:

Panel Type:

CSTN-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Designed For:

Industrial

Lamp Type:

1 PcsCCFL, 40K Hours, Optional

Supply Ability:

100000 Unit/Units per Month

Product Description

KHS057QV1CJ-G00 5.7 inch 320*240 LCD Screen LCD Display Panel

KHS057QV1CJ-G00 LCD Panel Product details :

Brand	Kyocera
Model P/N	KHS057QV1CJ-G00
Diagonal Size	5.7"
Panel Type	CSTN-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	120.2(W)×91.4(H) mm
Outline (mm)	154.6×114.8×9 (H×V×D)
Treatment	Glare (Haze 0%)
Luminance	50 cd/m² (Typ.)
Contrast Ratio	20 : 1 (Typ.) (TM) 8:1 (Typ.) (RF)
Viewing Angle	50/50/30/40 (Typ.)(CR≥2)
Response	250/150 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	STN, Normally Black, Transflective
Color Depth	Color 8%NTSC
Backlight	1 pcsCCFL, 40K hours, Optional
Mass	200g (Typ.)
Used for	Industrial
Refresh Rate	75Hz
Touchscreen	Without
Signal Type	Parallel Data (1ch, 8-bit), Connector15 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
KHS057QV1CJ-G00 5.7 inch 320*240 LCD Screen LCD Display Panel

KHS057QV1CJ-G00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

KHS057QV1CJ-G00 LCD Panel Shipping and Package :

KHS057QV1CJ-G00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

KHS057QV1CJ-G00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

KHS057QV1CJ-G00 LCD Panel FAQ :

Q: Can I pay my order of KHS057QV1CJ-G00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of KHS057QV1CJ-G00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods KHS057QV1CJ-G00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of KHS057QV1CJ-G00 ?

A: Of course!sample order is welcome !
