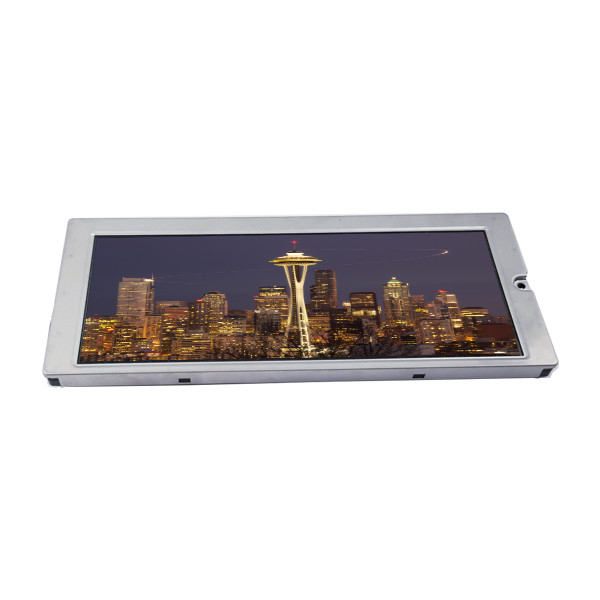

KHG062HV1AH-G00 6.2 inch 640*240 LCD SCREEN DISPLAY

Brand Name:	Kyocera
Model Number:	KHG062HV1AH-G00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

KHG062HV1AH-G00

Diagonal Size:

Panel Type:

CSTN-LCD, LCM

Resolution:

640(RGB)×240, HVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

147.84(W)×55.44(H) Mm

Designed For:

Industrial

Lamp Type:

1 Pcs CCFL, 54K Hours, Without Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

KHG062HV1AH-G00 6.2 inch 640*240 LCD SCREEN DISPLAY

KHG062HV1AH-G00 LCD Panel Product details :

Brand	Kyocera
Model P/N	KHG062HV1AH-G00
Diagonal Size	6.2"
Panel Type	CSTN-LCD, LCM
Resolution	640(RGB)×240, HVGA 109PPI
Pixel Format	RGB Vertical Stripe
Active Area	147.84(W)×55.44(H) mm
Bezel Opening	152.4(W)×60.0(H) mm
Outline Size	174.2(W)×73.4(H)×11.4(D) mm
Surface	Glare (Haze 0%)
Brightness	55 cd/m² (Typ.)
Contrast Ratio	20:1 (Typ.) (TM) 10:1 (Typ.) (RF)
Viewing Angle	45/45/30/20 (Typ.)(CR≥2)
Display Mode	STN, Normally Black, Transflective
Best View on	-
Response Time	190/180 (Typ.)(Tr/Td)
Display Colors	Color 8%NTSC
Lamp Type	1 pcs CCFL, 54K hours, Without Driver
Frequency	75Hz
Touch Screen	Without
Panel Weight	135g (Typ.)
Application	Industrial
Signal Interface	Parallel Data (1ch, 8-bit), 20 pins Connector
Input Voltage	3.3/5.0V (Typ.)(VDD)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
KHG062HV1AH-G00 6.2 inch 640*240 LCD SCREEN DISPLAY

KHG062HV1AH-G00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

KHG062HV1AH-G00 LCD Panel Shipping and Package :

KHG062HV1AH-G00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

KHG062HV1AH-G00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

KHG062HV1AH-G00 LCD Panel FAQ :

Q: How can I trace my order of KHG062HV1AH-G00 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .

Q: Can I pay my order of KHG062HV1AH-G00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of KHG062HV1AH-G00 ?

A: Of course!If you make a large order, we will give you a discount.
