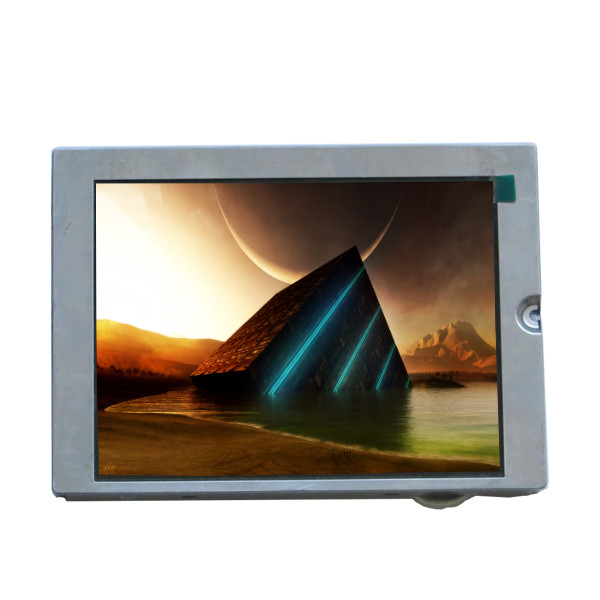

KG057QVLFF-G00 5.7 inch 320*240 LCD Screen Panel

Brand Name:	Kyocera
Model Number:	KG057QVLFF-G00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

KG057QVLFF-G00

Diagonal Size:

Panel Type:

FSTN-LCD, LCM

Resolution:

320×240, QVGA 70PPI

Pixel Format:

Rectangle

Active Area:

115.18(W)×86.38(H) Mm

Designed For:

Industrial

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

KG057QVLFF-G00 5.7 inch 320*240 LCD Screen Panel

KG057QVLFF-G00 LCD Panel Product details :

Brand	Kyocera
Model P/N	KG057QVLFF-G00
Diagonal Size	5.7"
Panel Type	FSTN-LCD, LCM
Resolution	320×240, QVGA 70PPI
Pixel Format	Rectangle
Active Area	115.18(W)×86.38(H) mm
Bezel Opening	119.4(W)×90.6(H) mm
Outline (mm)	144×104.4×9.2 (H×V×D)
Treatment	Glare (Haze 0%)
Luminance	170 cd/m² (Typ.)
Contrast Ratio	10 : 1 (Typ.) (TM)
Viewing Angle	45/45/20/40 (Typ.)(CR≥10)
Response	380/120 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	STN, Black/White (Negative), Transmissive
Color Depth	Monochrome
Backlight	WLED, 25K hours
Mass	130g
Used for	Industrial
Refresh Rate	75Hz
Touchscreen	Without
Signal Type	Parallel Data (1ch, 4-bit), Connector20 pins
Voltage Supply	3.3/5.0V (Typ.)(VDD)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C
KG057QVLFF-G00 5.7 inch 320*240 LCD Screen Panel

KG057QVLFF-G00 LCD Panel Specification :

Quality Assurance:

Before dispatching any of our LCD panels, we conduct a thorough quality check and testing process. This rigorous evaluation ensures that every unit meets our high standards for functionality and performance. Our commitment to quality means that you receive a product that is ready for immediate use, providing reliable and consistent performance. This process is part of our dedication to delivering excellence and customer satisfaction with every LCD panel purchased.

KG057QVLFF-G00 LCD Panel Shipping and Package :

KG057QVLFF-G00 LCD Panel Shipping Information :

Standard Shipping Practices:

We adhere to high standards in shipping practices, ensuring that your goods are transported safely and efficiently.

Processing Time:

We strive to dispatch your purchase within 3 working days after confirming receipt of payment. This quick turnaround ensures that your LCD panel reaches you in a timely manner.

Contact Information Requirement:

To facilitate on-time delivery, please provide a valid phone number when placing your order. This allows the delivery service to contact you directly in case of any delivery-related updates or issues.

Attention – Expedited Shipping Options:

For those requiring faster delivery, we offer expedited shipping options. Please contact us prior to placing your order if you wish to utilize expedited shipping via DHL or US Federal Express. We can then provide you with additional details on the costs and delivery timeframes associated with these services.

KG057QVLFF-G00 LCD Panel Return Policy :

Please be aware that tampering with or opening our product voids any eligibility for return or refund unless authorized by us. If any concerns arise regarding the product, kindly reach out to us for assistance. Unauthorized alterations or opening of our products will render them ineligible for refund.

In the event that your purchase does not meet your expectations, we offer a 14-day window for exchanges or refunds from the date of purchase. To proceed with either an exchange or refund, we require the original receipt, and the product must be in its original condition, which includes the intact box, packaging, and all accompanying accessories. Please allow a maximum of 10 business days for the return processing to be completed.

Please note that shipping and handling charges are non-refundable. You are responsible for covering the shipping costs for returns. Once the returned item reaches our warehouse, we will initiate a full refund for your purchase.

KG057QVLFF-G00 LCD Panel FAQ :

Q: How long the warranty of KG057QVLFF-G00 ?

A: 90 days .

Q: What happen if the KG057QVLFF-G00 received can't work ?

A: Our KG057QVLFF-G00 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Do you accept the sample order of KG057QVLFF-G00 ?

A: Yes, Welcome !

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
