Brand Name: | Kyocera |
Model Number: | KG057QVLCE-G050 |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

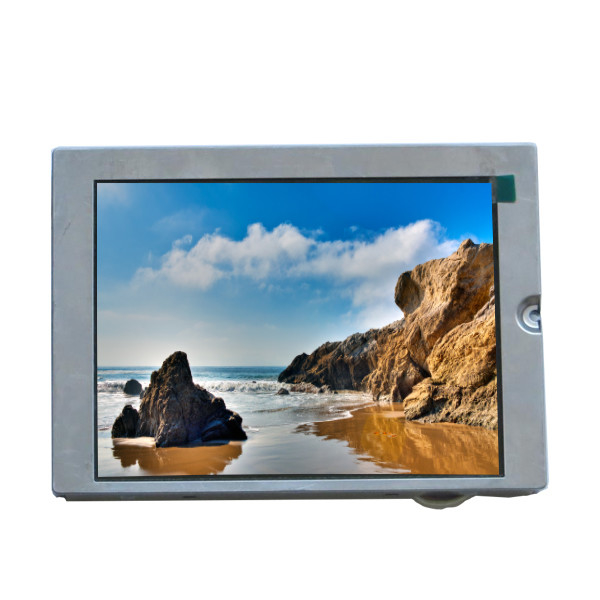

KG057QVLCE-G050 5.7 inch 320*240 LCD Panel display
KG057QVLCE-G050 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KG057QVLCE-G050 |
Diagonal Size | 5.7" |
Panel Type | FSTN-LCD, LCM |
Resolution | 320×240, QVGA 70PPI |
Pixel Format | Rectangle |
Active Area | 115.18(W)×86.38(H) mm |
Bezel Opening | 119.4(W)×90.6(H) mm |
Outline Size | 144(W)×104.8(H)×15.3(D) mm |
Treatment | Glare (Haze 0%) |
Luminance | 240 cd/m² (Typ.) |
Contrast Ratio | 40 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/25/45 (Typ.)(CR≥2) |
Response | 380/120 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | STN, Black/White (Negative), Transmissive |
Color Depth | Monochrome |
Backlight | WLED, 50K hours, No Driver |
Mass | 220g (Typ.) |
Used for | Industrial |
Refresh Rate | 75Hz |
Touchscreen | 4-wire Resistive Touch |
Signal Type | Parallel Data (1ch, 4-bit), 20 pinsConnector |
Voltage Supply | 3.3/5.0V (Typ.)(VDD) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
KG057QVLCE-G050 5.7 inch 320*240 LCD Panel display |
KG057QVLCE-G050 LCD Panel Shipping and Package :
Q: What happen if the KG057QVLCE-G050 received can't work ?
A: Our KG057QVLCE-G050 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of KG057QVLCE-G050 ?
A: Yes, Welcome !
Q: How long the warranty of KG057QVLCE-G050 ?
A: 90 days .
