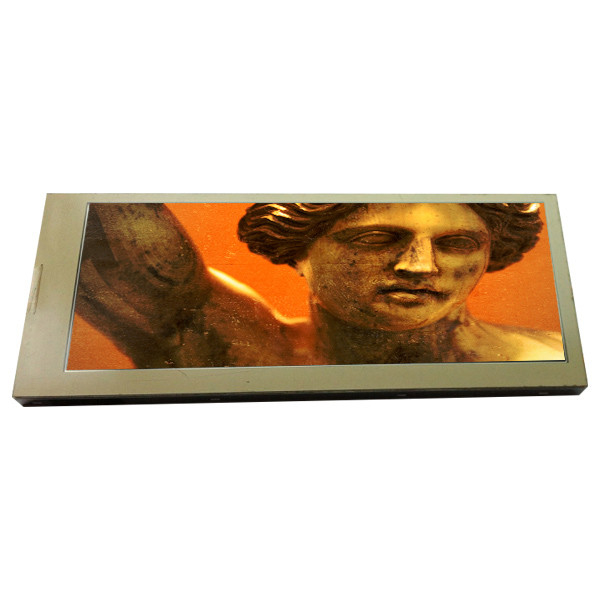

6.3 inch industrial lcd panel TX16D204VM0BAA lcd Screen display

All Category

Floor Standing Digital Signage

6.3 inch industrial lcd panel TX16D204VM0BAA lcd Screen display

Brand Name:	KOE
Model Number:	TX16D204VM0BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

TX16D204VM0BAA

Panel Size:

Resolution:

800(RGB)×280, 135PPI

Display Area:

150(W)×52.5(H) Mm

Bezel Opening:

153(W)×55.5(H) Mm

Outline Size:

167(W)×69(H)×9.5(D) Mm

Panel Weight:

107g (Typ.)

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

6.3 inch industrial lcd panel TX16D204VM0BAA lcd Screen display

TX16D204VM0BAA Product details :

HITACHI LCD Screen TX16D204VM0BAA
Panel Brand	HITACHI
Panel Model	TX16D204VM0BAA
screen size	6.3 inches
Panel Type	LCM, a-Si TFT-LCD
Resolution	800(RGB)×280 135PPI
Pixel configuration	RGB Vertical Stripe
Display size	150 × 52.5 mm (H×V)
visible size	153 × 55.5 mm (H × V)
physical dimension	167 × 69 × 9.5 mm (H×V×D)
Brightness	500 (Typ.)
Contrast Ratio	1000 : 1 (Typ.) [Transmission]
Viewing Angle	85/85/85/85 (Typ.) (CR≥10)
Optical mode	IPS, Normally Black, Transmissive
Number of colors	262K , 52% NTSC
Response time	40 (Typ.)(Tr+Td) ms
View Direction	Symmetry
Backlight type	WLED [3S3P] , 50K hours , W/O Driver
refresh rate	60Hz
Touch Screen	Without
screen weight	107g (Typ.)
Designed For	Industrial
signal system	CMOS (1 ch, 6-bit) , FPC , 50 pins
Supply voltage	3.3V (Typ.)
maximum rating	Storage temperature: -40 ~ 90 °C Operating temperature: -30 ~ 85 °C ; Vibration resistance: 5.0G (49.0 m/s²)
6.3 inch industrial lcd panel TX16D204VM0BAA lcd Screen display

TX16D204VM0BAA Our features :

1. Original quality guarantee.

2. Superior After-Sale service;

3. The most competitive prices here can provide;

4. Small order quantity accepted.

5. Offer 12 months of warranty;

6. Experienced staff can help you to solve your problem anytime.

With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

TX16D204VM0BAA Payment:

1. We accept Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....

2. If you have any problems of payment, please contact us freely.

TX16D204VM0BAA Shippment & Packing

6.3 inch industrial lcd panel TX16D204VM0BAA lcd Screen display 0

TX16D204VM0BAA Packing:

1. Normal packing

1) Replacement touch screen packed with Anti-static transparent plastic bags.

2) Wrap in protective air bubble bag.

3) Put into the foam boxes.

4) Pack with extra strong cartons.

2. Custom packing.

TX16D204VM0BAA Shipping:

1. Order will be shipped within 1-3 days after confirmed the payment.

2. Major express partners: DHL,UPS,EMS,Fedex

3. We are not responsible for any import fees,remote area charges,taxes or other Customs fees.

TX16D204VM0BAA FAQ:

Q: Can you give me a discount if I need a large quantity of TX16D204VM0BAA ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TX16D204VM0BAA via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of TX16D204VM0BAA ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of TX16D204VM0BAA ?

A: Of course!sample order is welcome !
