products details

Home > Products >

Industrial LCD Panel Display

21.5 inch 1920x1080 G215HAN01.201 30pins LCD Screen

All Category

Floor Standing Digital Signage

21.5 inch 1920x1080 G215HAN01.201 30pins LCD Screen

Brand Name:	AUO
Model Number:	G215HAN01.201
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G215HAN01.201

Diagonal Size:

21.5"

Resolution:

1920(RGB)×1080[FHD] 102PPI

Active Area:

476.064 × 267.786 Mm (H×V)

Bezel Opening:

479.8 × 271.3 Mm (H×V)

Outline(mm):

497.6 × 292.2 × 11 Mm (H×V×D)

Luminance:

300 (Typ.)(cd/m²)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Display Colors:

16.7M , 99% SRGB

Used For:

Industrial Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Product Description

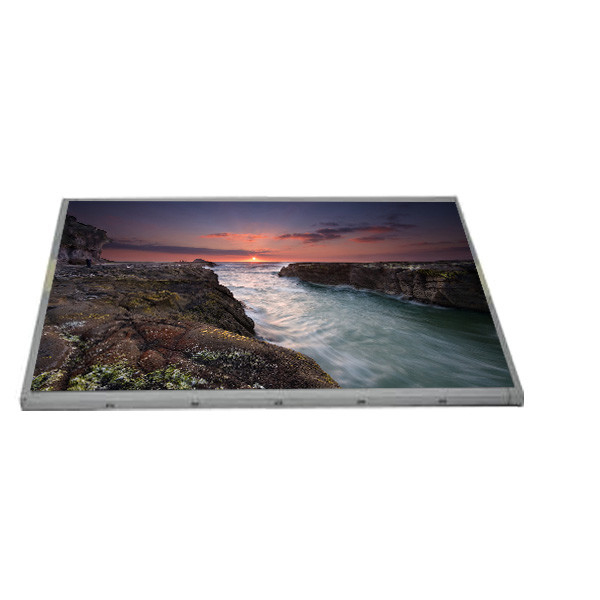

21.5 inch 1920x1080 G215HAN01.201 30pins LCD Screen

G215HAN01.201 Product details :

AUO LCD SCREEN G215HAN01.201
Panel Brand	AUO
Panel Model	G215HAN01.201
Panel Size	21.5 inches
Panel Type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080[FHD] 102PPI
Pixel Format	RGB Vertical Stripe
Display Area	476.064 × 267.786 mm (H×V)
Bezel Opening	479.8 × 271.3 mm (H×V)
Outline Size	497.6 × 292.2 × 11 mm (H×V×D)
Surface	Matte, Hard coating (3H)
Brightness	300 cd/m² (Typ.
Contrast Ratio	1000 : 1 (Typ.) [Transmission
Viewing Angle	89/89/89/89 (Typ.) (CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	12/10 (Typ.)(Tr/Td) ms
Display Colors	16.7M , 99% sRGB
Lamp Type	WLED [12S4P] , 50K hours, no driver
Frequency	60Hz
Panel Weight	1.74Kgs (Typ.)
Touch Screen	Without
Application	Industrial Medical Imaging
Signal Interface	30 pins LVDS (2 ch, 8-bit) , terminal
Input Voltage	5.0V (Typ.)
Environment	Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C
21.5 inch 1920x1080 G215HAN01.201 30pins LCD Screen

G215HAN01.201 Payment:

Your order should be paid within 3 days to avoid the cancellation of the order.

You can pay your order via ESCROW, the leading three-party online payment platform. Escrow allows you to pay securely online without exposing your credit card details. Your payment is only released to us after you confirm satisfactory receipt of your order. Escrow is fast, free and easy to use.

Currently, the payment methods supported by Escrow include Moneybookers, Visa, MasterCard, Western Union, Qiwi and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.

For more information about ESCROW, please contact us.

G215HAN01.201 Shipping:

1,We will send out your goods within 3 working days after we get your order .

2,Free Shipping via China Post Registered Air Mail or ePacket.You can choose any other shipping method on Aliexpress too.

3, Please make sure your shipping information are correct before order .If you want us send it to another address , pls inform us in advance ,

and leave message in our transaction.

G215HAN01.201 Delivery time is approx:

United States / United Kingdom / Australia 7-14 working days.

Canada 7-25 working days.

France / Spain / Germany may take 7-20 working days.

Eastern Europe may take up to 16-30 working days.

Italy / Brazil / South America may take up to 30-50 working days.

Shipped by DHL Express (Need 3-6 working days to arrive)

G215HAN01.201 FAQ:

Q: How to order lcd panel G215HAN01.201 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order 21.5 inch lcd panel G215HAN01.201 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 21.5 inch lcd panel G215HAN01.201 before shipping?

A: Don't Worry , Our AUO G215HAN01.201 was tested ok before shipping

Q: What happen if AUO G215HAN01.201 I received can't work ?

A: Our AUO lcd G215HAN01.201 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

G215HAN01.201 Shipping and Package :
21.5 inch 1920x1080 G215HAN01.201 30pins LCD Screen 0
