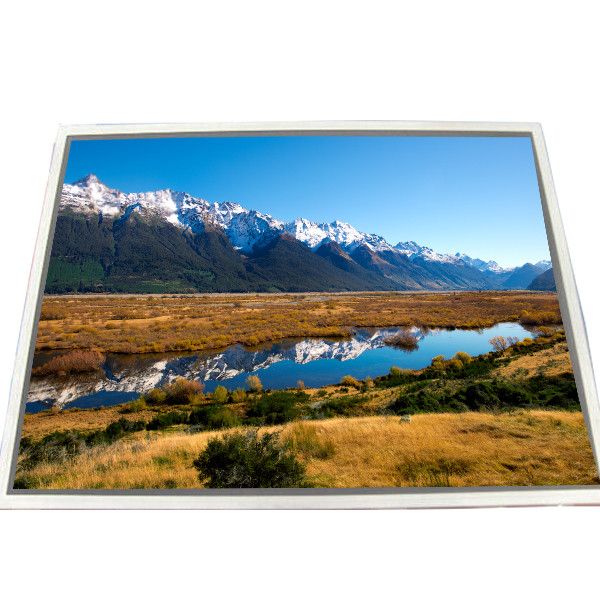

19.0 inch 1280*1024 NL128102AC29-17G TFT LCD Screen Display

Brand Name:	NEC
Model Number:	NL128102AC29-17G
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL128102AC29-17G

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Outline Dim.:

396(W)×324(H)×18.5(D) Mm

Bezel Opening:

380.32(W)×305.06(H) Mm

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

19.0 inch 1280*1024 NL128102AC29-17G TFT LCD Screen Display

NL128102AC29-17G LCD Panel Product details :

NLT LCD Screen NL128102AC29-17G
Manufacturer	NLT
Model Name	NL128102AC29-17G
Screen Size	19.0inch
Panel Type	a-Si TFT-LCD, LCM
Number of pixels	1280(RGB)×1024, SXGA 86PPI
Pixel layout	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.32(W)×305.06(H) mm
Outline (mm)	396(W)×324(H)×18.5(D) mm
Treatment	Clear
Luminance	800 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing angle	88/88/88/88 (Typ.)(CR≥10)
Response	14/11 (Typ.)(Tr+Td) ms
View Direction	Symmetry
Work Mode	UA-SFT, Normally Black, Transmissive
Color Depth	16.7M 72% NTSC
Backlight	WLED , 70K hours , With LED Driver
Mass	2.10/2.31Kgs (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
19.0 inch 1280*1024 NL128102AC29-17G TFT LCD Screen Display

NL128102AC29-17G LCD Screen Why choose us?

We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.

1. Bulk orders will be provided to you at an acceptable low price.

2. Wide range of parts, please visit our store to see more.

3. Fast Delivery-Most items will be shipped within 24 hours.

4. Provide extensive after-sales support through messages, emails, etc.

5. Friendly return policy.

NL128102AC29-17G LCD Screen Specifications :

Designed as a seamless replacement for your existing screen, the NL128102AC29-17G LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.

Before making your purchase, we highly recommend examining the provided picture to verify that the NL128102AC29-17G LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.

NL128102AC29-17G LCD Panel Shipping and Package :
19.0 inch 1280*1024 NL128102AC29-17G TFT LCD Screen Display 0

NL128102AC29-17G LCD Screen Quality & Warranty:

In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.

We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.

Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.

NL128102AC29-17G LCD Panel FAQ :

Q: Can You declare my order of NL128102AC29-17G to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of NL128102AC29-17G?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of NL128102AC29-17G?

A: Of course!sample order is welcome !

Q: Can I pay my order of NL128102AC29-17G via credit card ?

A: Yes!you can use your credit card through your Paypal account.
