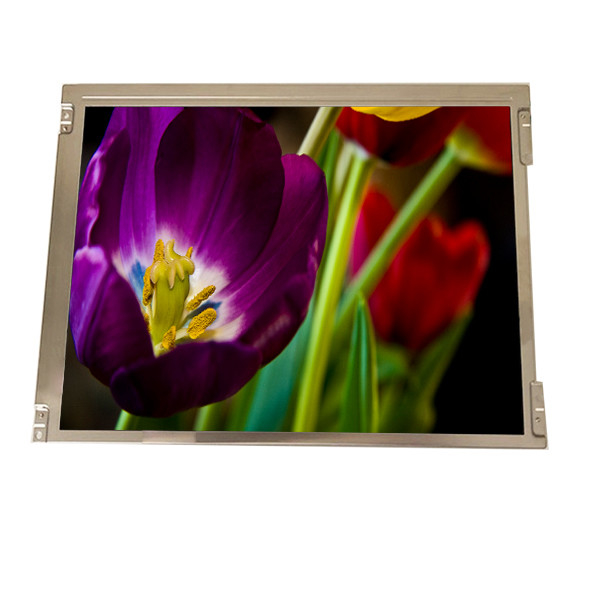

Name: 12.1 inch 82ppi lcd screen LQ121S1LW01 for Industrial Equipment Application
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ121S1LW01
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ121S1LW01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

LQ121S1LW01

Panel Size:

12.1"

Resolution:

800(RGB)×600, SVGA, 82PPI

Display Area:

246(W)×184.5(H) Mm

Bezel Opening:

249.0(W)×187.5(H) Mm

Outline Size:

276(W)×209(H)×11(D) Mm

Panel Weight:

800g (Max.)

Application:

Industrial

Signal Interface:

LVDS (1 Ch, 6-bit) , 20 Pins Connector

Input Voltage:

3.3/5.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

12.1 inch 82ppi lcd screen LQ121S1LW01 for Industrial Equipment Application

LQ121S1LW01 Product details :

Sharp LCD Screen LQ121S1LW01
Panel Brand	Sharp
Panel Model	LQ121S1LW01
screen size	12.1 inches
Panel Type	LCM, a-Si TFT-LCD
Resolution	800(RGB)×600, SVGA, 82PPI
Pixel configuration	RGB Vertical Stripe
Display size	246 × 184.5 mm (H×V)
visible size	249.0 × 187.5 mm (H×V)
physical dimension	276 × 209 × 11 mm (H×V×D)
Surface	Matte, Hard coating (3H)
Brightness	250 (Typ.)
Contrast Ratio	800 : 1 (Typ.) [Transmission]
Viewing Angle	85/85/85/85 (Typ.) (CR≥10)
Optical mode	ASV, Normally Black, Transmissive
Number of colors	262K , 49% NTSC
Response time	13/16 (Typ.)(Tr/Td) ms
Best View on	Symmetry
Backlight type	2 pcs CCFL , 50K hours, no driver
Application	Industrial
Touch Screen	Without
screen weight	800g (Max.)
signal system	LVDS (1 ch, 6-bit) , 20 pins Connector
Supply voltage	3.3/5.0V (Typ.)
maximum rating	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
12.1 inch 82ppi lcd screen LQ121S1LW01 for Industrial Equipment Application

LQ121S1LW01 Our services:

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Russian,Korean

LQ121S1LW01 PAYMENT:

Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.

Online trade assurance order, all is up to you.

More payment terms could be provided (T/T, Paypal, Western Union)

LQ121S1LW01 Shippment & Packing

12.1 inch 82ppi lcd screen LQ121S1LW01 for Industrial Equipment Application 0

LQ121S1LW01 Packaging:

1. Anti-static bag or Bubble bag; (For samples)

2. Plastic pallet;

3. Carton box.

LQ121S1LW01 About us:

1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.

2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.

3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.

4. The warranty period of the product is 12 months.

LQ121S1LW01 FAQ:

Q: Can You declare my order of LQ121S1LW01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods LQ121S1LW01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of LQ121S1LW01 ?

A: Of course!If you make a large order, we will give you a discount.
