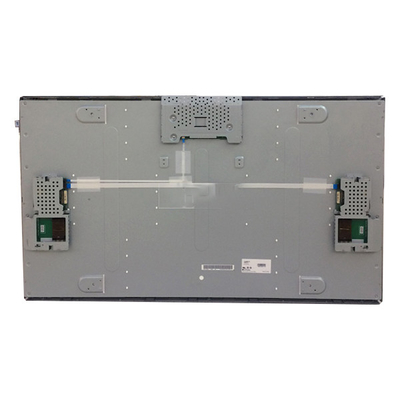

New Lcd Video Wall LD420WUB-SBG1 1920(RGB)×1080 FHD 52PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LD420WUB-SBG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LD420WUB-SBG1 | Screen Size: | 42inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 FHD 52PPI | Active Area(mm): | 930.24(horizontal)×523.26(vertical) Mm |
| Outline(mm): | 956.4 (horizontal) × 549.4 (vertical) × 54.5 (thickness) Mm | Bezel Area(mm): | 936.2(horizontal)×529.2(vertical) Mm |
| Luminance: | 500 (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) [Transmission] |
| High Light: | 42inch LD420WUB-SBG1,Lcd Video Wall FHD 52PPI,Digital Signage lcd video wall display |
||
Product Description
New Lcd Video Wall LD420WUB-SBG1
Product details :
| LG Display LCD SCREEN LD420WUB-SBG1 | |
| manufacturer | LG Display |
| Model Name | LD420WUB-SBG1 |
| screen size | 42.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 52PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 930.24(horizontal)×523.26(vertical) mm |
| physical dimension | 956.4 (horizontal) × 549.4 (vertical) × 54.5 (thickness) mm |
| Visual size | 936.2(horizontal)×529.2(vertical) mm |
| surface treatment | Matte (Haze 10%), Hard coating (3H) |
| Brightness | 500cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | Full view |
| Optical mode | S-IPS, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Responding time | 9 (Typ.)(G to G) ms |
| Number of color | 16.7M/1.06B , 72% NTSC |
| Backlight type | CCFL , 50K hours, with inverter |
| Patchwork | 26.2 mm (active to active seam) |
| Apply to | digital signage / multi-screen |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | 51 pins LVDS (2 ch, 8/10-bit) , terminal |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| New Lcd Video Wall LD420WUB-SBG1 | |
LG Display LD420WUB-SBG1 Mechanical Features
| Panel Size : | 42 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1615×0.4845 mm | 0.4845×0.4845 mm [52PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 930.24×523.26 mm | 936.2×529.2 mm | 956.4×549.4 mm | 35.5/54.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Videowall Seam |
| Flat Rectangle | 16:9 (W : H) | Landscape / Portrait | 26.2 mm (Active to Active) | |
| Fixation : | Side mounting holes (8-M4); Rear mounting holes (8-M4) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 10.5/11.5Kgs (Typ./Max.) | Antiglare (Haze 10%), Hard coating (3H) | ||
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods LD420WUB-SBG1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen LD420WUB-SBG1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LD420WUB-SBG1 ?
A: 90 days warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
