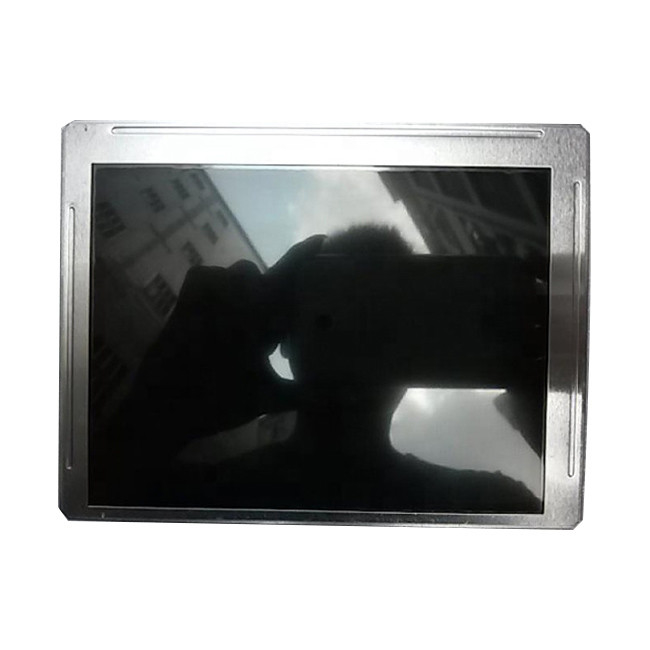

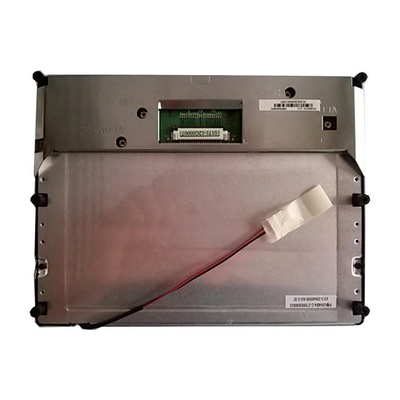

6.4 inch PVI Industrial LCD Panel Display PA064DS5
Product Details:
| Place of Origin: | China |
| Brand Name: | PVI |
| Model Number: | PA064DS5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PA064DS5 | Screen Size: | 6.4 Inch |
|---|---|---|---|
| Pixel Number: | 320(RGB)×234 62PPI | Active Area(mm): | 129.6 × 97.34 (H×V) |
| Outline(mm): | 156.3 × 119.8 × 14.7 (H×V×D) | Bezel Area(mm): | 134.8 × 101.65 (H×V) |
| Luminance: | 330 (Typ.) | Contrast Ratio: | 600: 1 (Typ.) [Transmission] |
Product Description
6.4 inch PVI Industrial LCD Panel Display PA064DS5
Product details :
| PVI LCD SCREEN PA064DS5 | |
| manufacturer | PVI |
| Model Name | PA064DS5 |
| screen size | 6.4 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 320(RGB)×234 62PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 129.6 × 97.34 (H×V) |
| physical dimension | 156.3 × 119.8 × 14.7 (H×V×D) |
| Visual size | 134.8 × 101.65 (H×V) |
| Brightness | 330cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 70/70/50/55 (Typ.)(CR≥10) |
| Responding time | 15/25 (Typ.)(Tr/Td) ms |
| Number of color | Full color |
| Backlight type | WLED , No Driver |
| Panel weight | 226g (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | TFT Specific Analog RGB , 20 pins Connector |
| Supply voltage | 5.0/5.0/17/-15V (Typ.)(VCC/VDD/VGH/VGL) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 6.4 inch PVI Industrial LCD Panel Display PA064DS5 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept sample orders for PA064DS5 ?
A: Of course!sample order is welcome!
Q: Can you give me a discount if I need a large quantity of PVI PA064DS5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of lcd panel PA064DS5 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of PVI PA064DS5 ?
A: 90 days warranty .
We are one of the professional and experienced suppliers of 6.4 inch PVI Industrial LCD Panel Display PA064DS5, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
