7.0 inch LG LCD Screen Display Panel LB070WV6-TD08
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LB070WV6-TD08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | LG Display | Model Name: | LB070WV6-TD08 |
|---|---|---|---|
| Screen Size: | 7.0 Inch | Resolution: | 800×480(RGB) WVGA 134PPI |
| Display Size: | 151.44(H)×90.576(V) Mm | Physical Dimension: | 165(H)×104.6(V) ×3.6(T) Mm |
| Viewable Area: | 158.44(H)×93.526(V) Mm | Brightness: | 350cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Best Angle: | 6 O'clock |
| Apply To: | Portable DVD / MP3 PMP / Digital Photo Frame / Video Phone | ||
Product Description

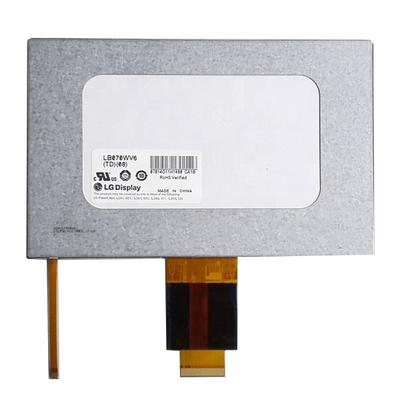

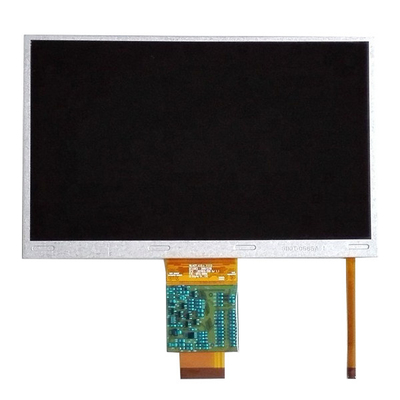

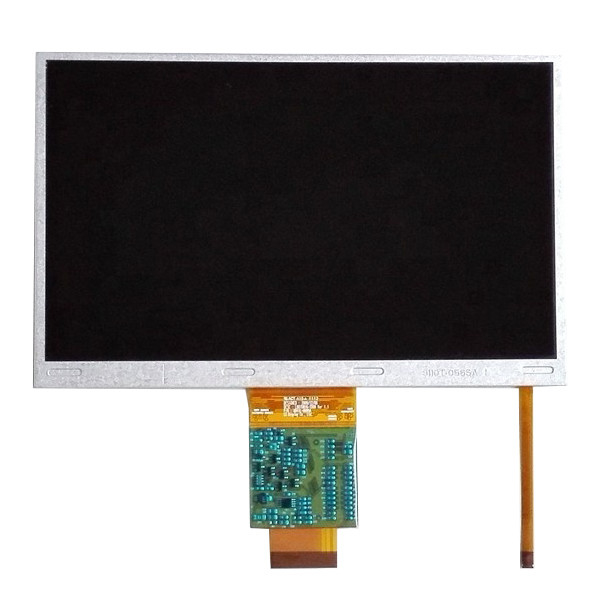

7.0 inch LG LCD Screen Display Panel LB070WV6-TD08
LB070WV6-TD08 Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| LG Display LCD SCREEN LB070WV6-TD08 | |
|---|---|
| Manufacturer | LG Display |
| Model Name | LB070WV6-TD08 |
| Screen Size | 7.0 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 800×480(RGB) WVGA 134PPI |
| Pixel arrangement | RGB horizontal bar |
| Display area | 151.44(H)×90.576(V) mm |
| physical dimension | 165(H)×104.6(V) ×3.6(T) mm |
| Open area | 158.44(H)×93.526(V) mm |
| Surface treatment | Matte |
| Display brightness | 350 cd/m2 (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 10/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 65/65/50/60 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 16.7M, 49% NTSC |
| type of light source | WLED [7S3P], no driver |
| weight | 108/112g (Typ./Max.) |
| Frame rate | 60Hz |
| Interface Type | 40 pins Parallel RGB (1 ch, 8-bit), FPC |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 ° |
| 7.0 inch LG LCD Screen Display Panel LB070WV6-TD08 | |
LB070WV6-TD08 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
LB070WV6-TD08 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
LB070WV6-TD08 FAQ :
Q: How can I trace my order of LB070WV6-TD08 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LB070WV6-TD08 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of LB070WV6-TD08 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LB070WV6-TD08 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
