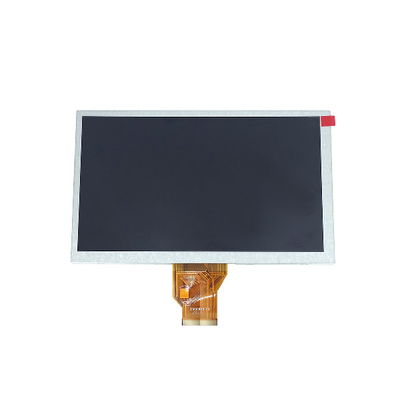

Original AT080TN64 8 inch TFT 800*480 LCD Screen Display Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Chimei Innolux |
| Model Number: | AT080TN64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | Chimei Innolux | Model Name: | AT080TN64 |
|---|---|---|---|
| Screen Size: | 8.0 Inch | Resolution: | 800(RGB)×480 (WVGA) 116PPI |
| Display Size: | 176.64 × 99.36 (H×V) | Physical Dimension: | 192.8 × 116.9 × 6.7 (H×V×D) |
| Bezel Opening: | 180.1 × 103.4 (H×V) | Brightness(cd/m²): | 450 Cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Apply To: | Car Display |
Product Description
Original AT080TN64 8 inch TFT 800*480 LCD Screen Display Panel
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Chimei Innolux LCD SCREEN AT080TN64 | |
| Panel Brand | Chimei Innolux |
| Panel Model | AT080TN64 |
| Panel Size | 8.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 (WVGA) 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 176.64 × 99.36 (H×V) |
| Bezel Opening | 192.8 × 116.9 × 6.7 (H×V×D) |
| Outline Size | 180.1 × 103.4 (H×V) |
| Surface | Antiglare, |
| Brightness | 450 (Typ.)(cd/m²) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 3S12P WLED , 20K hours , No Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 245g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Original AT080TN64 8 inch TFT 800*480 LCD Screen Display Panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: How can I trace my order of AT080TN64 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of AT080TN64 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can you give me a discount if I need a large quantity of AT080TN64?
A: Of course!If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of Original AT080TN64 8 inch TFT 800*480 LCD Screen Display Panel , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
