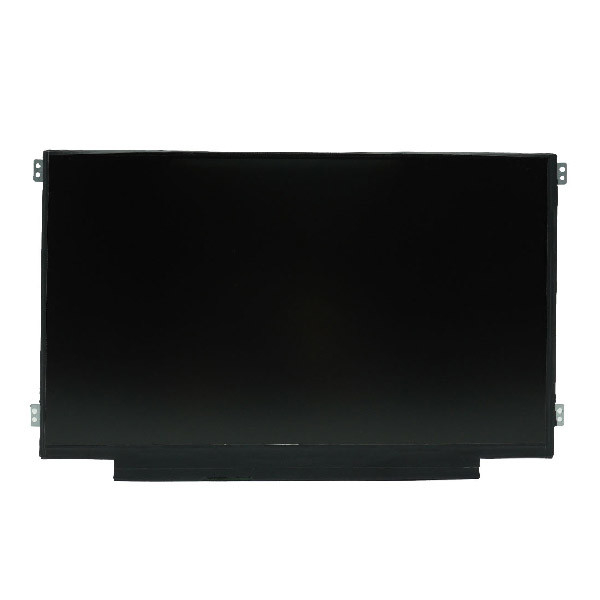

11.6 Inch Laptop LCD Screen Display Panel N116BGE-EA2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | N116BGE-EA2 (CMN1132) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | Innolux | Model Name: | N116BGE-EA2 (CMN1132) |
|---|---|---|---|
| Screen Size: | 11.6 Inch | Resolution: | 1366(RGB)×768, WXGA, 135PPI |
| Display Size: | 256.125(W)×144(H) Mm | Physical Dimension: | 268(W)×172.9(H) ×3(D) Mm |
| Bezel Opening: | 259.125(W)×146.8(H) Mm | Brightness(cd/m²): | 220 Cd/m² (Typ.) |
| Contrast: | 500:1 (Typ.) (TM) | Apply To: | Notebook / Tablet |
Product Description
11.6 inch laptop LCD Screen Display Panel N116BGE-EA2
Product details :
TFT LCD Panel, LCD/LED backlight
A Grade , 100% New Original
In Stock
| Innolux LCD SCREEN N116BGE-EA2 (CMN1132) | |
| Panel Brand | Innolux |
| Panel Model | N116BGE-EA2 (CMN1132) |
| Panel Size | 11.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 256.125(W)×144(H) mm |
| Bezel Opening | 259.125(W)×146.8(H) mm |
| Outline Size | 268(W)×172.9(H) ×3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | 10S2P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (1 Lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 11.6 inch laptop LCD Screen Display Panel N116BGE-EA2 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ :
Q: Can you give me a discount if I need a large quantity of N116BGE-EA2 (CMN1132) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods N116BGE-EA2 (CMN1132) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of N116BGE-EA2 (CMN1132)7 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
We are one of the professional and experienced suppliers of 11.6 inch laptop LCD Screen Display Panel N116BGE-EA2 , offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
